SHM

Structural Health Monitoring

The Solution

WHG's Structural Health Monitoring (SHM) is an innovative solution designed specifically for engineers and future engineers. Our SHM system is a comprehensive package that combines advanced hardware and software to provide real-time evaluation of infrastructural integrity. Whether you're a seasoned professional or a newcomer to the field of instrumentation and monitoring, WHG SHM offers a versatile and user-friendly solution.

Simple Installation

Just plug in the required sensor and connect wirelessly.

Ultra Low Power Consumption

Ensures long-lasting operation.

Versatile Use

Suitable for beginners and seasoned professionals.

Software and Cloud Connect

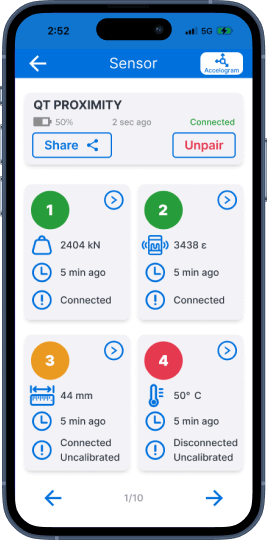

Intuitive app effortlessly gathers, logs, and visualises data in real-time on iOS & Android. Access data remotely through the secure web-portal.

Bluetooth Low-Energy (BLE)

Compatible with various devices.

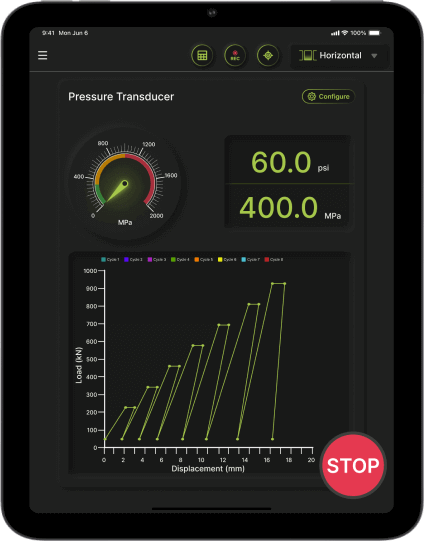

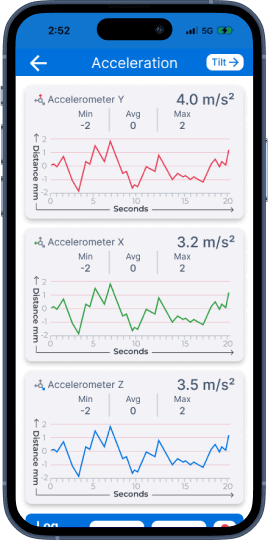

Real-time Data Visualisation

Dynamic graphical representations for effective analysis.

Contact Sales

Structural Health Monitoring

Educational

An innovative university data acquisition solution enabling university staff and students to facilitate teaching and research of engineering. Enables users to effortlessly acquire, log, and comprehend their data.

With a commitment to usability and functionality, we bridge the gap between device and data.

Whole Student Package includes:

SHM Educational Monitoring (IoT Reader)
Mobile Application
S-Load Cell
Shear Beam Load Cell
Linear Potentiometer
Spoke Type Load Cell

Available attachments to purchase:

Laser
Strain Gauge
RTD Temp. Sensor

Student package is sold as a whole package. Please see more information for the package contents and other available student products.

Contact Sales More Information

Commercial

Discover WHG’s advanced Structural Health Monitoring (SHM) solution. Our SHM system provides seamless data acquisition, real-time analysis, and cloud connectivity, ensuring the integrity and safety of infrastructure.

Equip your business with cutting-edge technology to monitor and maintain the health of your structures.

Available to purchase for Commercial use:

SHM Commercial Monitoring (IoT Reader)
Mobile and Desktop Application
Digital Twin
Automated Hydraulics

Available attachments to purchase:

S-Load Cell
Shear Beam Load Cell
Linear Potentiometer
Spoke Type Load Cell
Laser
Strain Gauge
RTD Temp. Sensor

Commercial products and attachments are purchased separately from the Commercial Monitoring IoT Reader. Please see more information for available commercial products.

Contact Sales More Information

The Science

IoT Device

The IoT-enabled Structural Health Monitoring (SHM) device is an advanced tool crafted for real-time evaluation of infrastructural integrity.

Harness the capabilities of the Internet of Things, with SHM, ensuring continuous data acquisition and analysis and. SHM is an invaluable resource for research and pedagogical purposes in engineering.

Facilitate a deeper understanding of structural dynamics, whether used in practical applications like monitoring bridges and buildings or academic settings, to enrich the learning experience. SHM provides is a versatile asset for both professional and academic engineering aspects.

Software

Structural Health Monitoring (SHM) by WHG is a seamless solution for data acquisition. SHM leverages the capabilities of Bluetooth Low-Energy (BLE) devices, through an intuitive interface, to effortlessly gather data and log and visualise the information in real-time.

SHM is compatible with both iOS and Android devices, ensuring that users across diverse ecosystems can effectively harness the power of the solution, making data acquisition more accessible and streamlined. Devices with cellular connections can gain access to real-time data acquisition from remote locations, via the cloud through a secure and user-friendly web portal.
